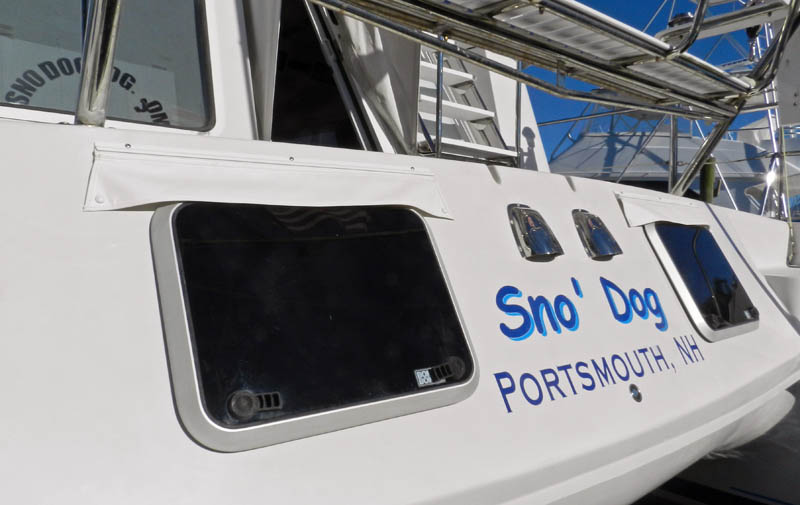

Flaps over aft hatches prevent drips (onto beds) when hatches are left open.

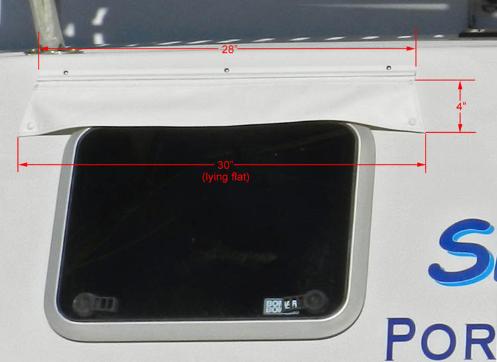

Here are the dimensions of my flaps. I gather this works only with the new style davits.
Another recent Sno' Dog improvement...

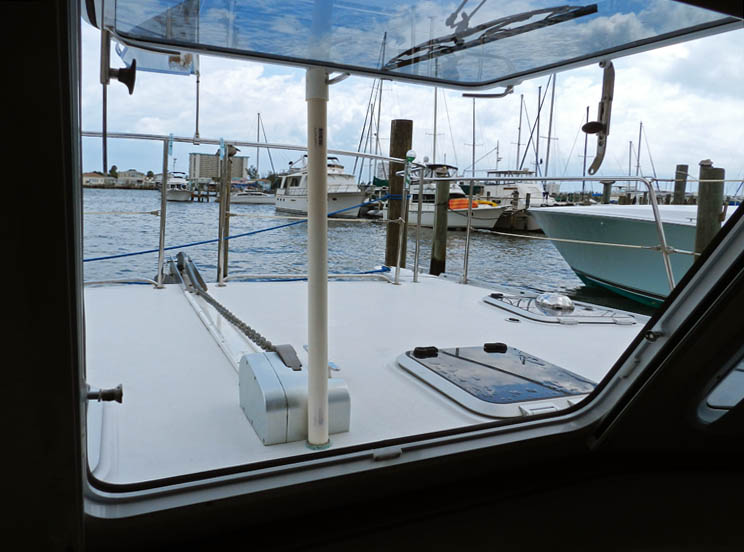

Wide open window! Good for letting in the breeze when at anchor - good for Bahamas in May!
In preparation for the Exumas Adventure, I decided it was time to give Sno' Dog a wide opening front window.
As others have done, I used a piece of PVC pipe as a support post. I cut a grove in the top which locks it into the
window handle. On the bottom there's a piece of carpet for padding.
As others have done, I used a piece of PVC pipe as a support post. I cut a grove in the top which locks it into the
window handle. On the bottom there's a piece of carpet for padding.

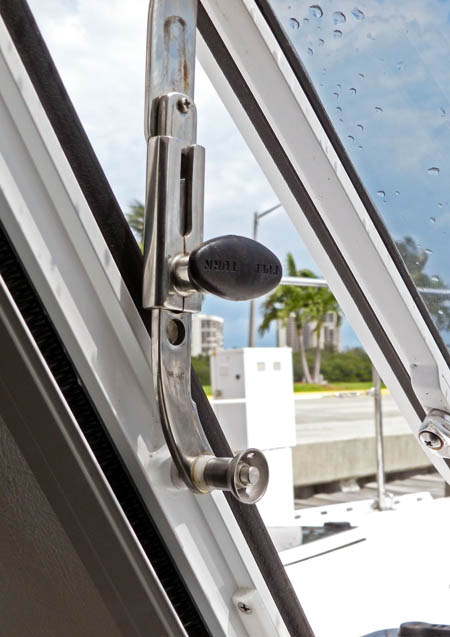

What's unique (I believe) about my version are the quick releases on the side support struts. This allows us
to use original partial-opening method, or to quickly release the struts and open the window fully.
to use original partial-opening method, or to quickly release the struts and open the window fully.
I removed the original hex-head bolts and replaced them with "Ball-Lok" 3/16" x 1" Quick Release Pins
(available fr West Marine) which lock right into the threaded holes. I also used aluminum bushings to increase
the diameter to 5/16" for the struts along with the original nylon washers. It works great! We can unhook the
struts and fully open the window in a matter of seconds!
(available fr West Marine) which lock right into the threaded holes. I also used aluminum bushings to increase
the diameter to 5/16" for the struts along with the original nylon washers. It works great! We can unhook the
struts and fully open the window in a matter of seconds!

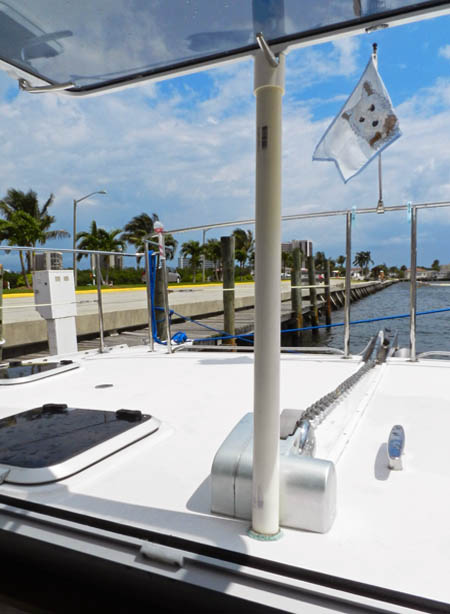

The support post in place - with notch at the top for the handle.
.
